Understanding Layer 2 Switching: The Foundation of Modern Network Infrastructure

Introduction: Setting the Stage for Layer 2 Switching

In the intricate world of computer networks, the seamless flow of data between devices is paramount. At the heart of this capability lies network switching, a fundamental process that directs information from a source to its intended destination. Whether accessing a webpage, sending an email, or sharing files across a local network, switching mechanisms are constantly at work. This article delves into a specific and crucial type of switching: Layer 2 switching. Often referred to in contexts like “switching 2nd,” this term signifies operations at the second layer of the Open Systems Interconnection (OSI) model—the Data Link Layer. Layer 2 switching is the bedrock of local area networks (LANs), enabling efficient communication between devices within the same network segment. It addresses the fundamental need for devices to discover each other and exchange data frames reliably and swiftly, forming the invisible yet essential fabric of our daily digital interactions.

The OSI Model Context: Where Layer 2 Switching Fits In

To fully appreciate Layer 2 switching, it’s essential to understand its place within the broader framework of network communications. The OSI model provides a conceptual blueprint, dividing network operations into seven distinct layers, each with specific responsibilities. This layered approach standardizes network protocols and promotes interoperability between diverse systems.

Layer 2, the Data Link Layer, sits directly above the Physical Layer (Layer 1) and below the Network Layer (Layer 3). Its primary functions are critical for local network communication and directly underpin Layer 2 switching operations:

• Layer 7: Application Layer
• Layer 6: Presentation Layer
• Layer 5: Session Layer
• Layer 4: Transport Layer
• Layer 3: Network Layer
• Layer 2: Data Link Layer
  • Framing: Encapsulating data from the Network Layer into units called frames. Each frame includes a header and a trailer containing control information.
  • Physical Addressing: Employing Media Access Control (MAC) addresses. Each network interface card (NIC) has a globally unique MAC address, which Layer 2 uses to identify specific devices on the local network segment. As documented by sources like Cisco and GeeksforGeeks, switches learn these addresses to make forwarding decisions.
  • Error Detection: Performing checks, often via a Frame Check Sequence (FCS) in the trailer, to detect errors that may have occurred during transmission over the physical medium. Corrupted frames are typically discarded.
  • Flow Control: Managing the rate of data transmission between two nodes to prevent a fast sender from overwhelming a slow receiver.
  • Access Control: For shared media, determining which device has the right to transmit data at any given time, managing access to the physical medium.
• Layer 1: Physical Layer

Layer 2 switches operate primarily by examining the MAC addresses contained within data frames. Their intelligence in handling these frames is what distinguishes them from simpler devices like hubs and forms the basis of efficient LAN communication.

Core Mechanic: How Layer 2 Switching Operates

The efficacy of Layer 2 switching hinges on a sophisticated yet rapid decision-making process executed by network switches. This process primarily revolves around the use of MAC addresses and a dynamically maintained address table.

MAC Addresses: The Unique Identifiers

A Media Access Control (MAC) address is a unique hardware identifier assigned to a network interface controller (NIC) for communications at the Data Link Layer. These 48-bit addresses (typically represented as six pairs of hexadecimal digits, e.g., 00:1A:2B:3C:4D:5E) are intended to be globally unique and are usually burned into the hardware by the manufacturer. In the context of Layer 2 switching, the MAC address of the source device and the destination device are critical pieces of information within each data frame.

The Switching Process: Learning, Forwarding, Filtering, and Flooding

When a Layer 2 switch receives a data frame on one of its ports, it undertakes a series of actions:

1. Frame Reception: The switch receives an incoming frame on a port.
2. Source MAC Address Learning: The switch examines the source MAC address of the incoming frame. It records this MAC address and the port on which the frame was received in its MAC address table (also known as a Content Addressable Memory, or CAM table). If an entry for that MAC address already exists, the switch updates its timestamp. This learning process allows the switch to build a map of which devices are connected to which ports.
3. Destination MAC Address Lookup: The switch then examines the destination MAC address in the frame’s header. It consults its MAC address table to find an entry corresponding to this destination MAC.
4. Decision Making – Forward, Filter, or Flood:
   • Forwarding: If the destination MAC address is found in the table and is associated with a *different* port than the one on which the frame arrived, the switch forwards the frame *only* out of that specific destination port. This targeted delivery is a key efficiency of switches.
   • Filtering: If the destination MAC address is found in the table and is associated with the *same* port on which the frame arrived, the switch discards (filters) the frame. This prevents the frame from being unnecessarily sent back onto the network segment it originated from.
   • Flooding: If the destination MAC address is *not* found in the MAC address table (i.e., it’s an unknown unicast address), or if the frame is a broadcast (e.g., FF:FF:FF:FF:FF:FF) or multicast frame, the switch floods the frame out of all its ports *except* the port on which it was received. This ensures the frame reaches its destination if it’s on an unknown segment or all devices in the case of a broadcast.

Key Characteristics of Layer 2 Switches

• Hardware-Based Operations: Modern Layer 2 switches perform their core functions (MAC address learning, frame forwarding decisions) using specialized hardware known as Application-Specific Integrated Circuits (ASICs). This enables processing at “wire speed,” meaning frames can be processed as fast as they arrive, leading to very low latency (Geek University).
• Collision Domain Segmentation: Each port on a switch creates a separate collision domain. This drastically reduces the likelihood of data collisions (which occur when two devices try to transmit simultaneously on a shared medium), a common problem with older hub-based networks. Fewer collisions mean higher network efficiency.
• Single Broadcast Domain (Default): By default, all ports on a Layer 2 switch belong to the same broadcast domain. This means a broadcast frame sent by one device will be flooded to all other devices connected to the switch. However, Layer 2 switches support Virtual LANs (VLANs), which can logically segment the switch into multiple broadcast domains.

Crucial Distinction: Layer 2 vs. Layer 3 Switching

While Layer 2 switching forms the backbone of local network communication, modern networks often involve complexities that require operations beyond the Data Link Layer. This is where Layer 3 switching, or routing, comes into play. Understanding the differences between Layer 2 and Layer 3 operations is crucial for effective network design and troubleshooting.

Layer 3 switches (or routers) operate at the Network Layer (Layer 3) of the OSI model and make forwarding decisions based on IP addresses rather than MAC addresses. They are designed to connect different networks or subnetworks, facilitating communication between them.

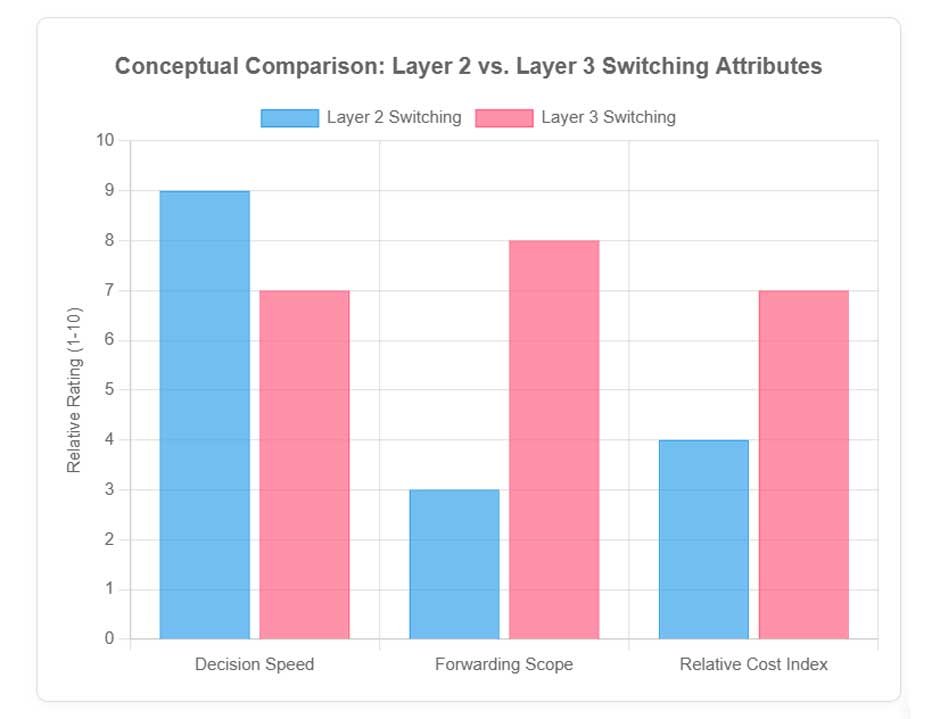

The following table highlights the primary distinctions:

It is important to note that Layer 2 and Layer 3 functionalities are not mutually exclusive; many modern enterprise networks utilize both. Layer 3 switches, for example, combine the high-speed hardware forwarding of Layer 2 switches with the routing capabilities of Layer 3 devices (IPCisco).

The Advantages: Why Layer 2 Switching Matters

Layer 2 switching remains a cornerstone of network infrastructure due to a compelling set of advantages that make it highly suitable for a wide range of applications, particularly within local area networks.

• Speed and Efficiency: As highlighted by sources like Geek University, Layer 2 switches provide wire-speed performance with very low latency. This is because forwarding decisions are made in dedicated hardware (ASICs) based on simple MAC address lookups, without the need to inspect or modify deeper packet information (like IP headers) for basic L2 forwarding. This makes them exceptionally efficient for high-volume traffic within a LAN.
• Cost-Effectiveness: Compared to Layer 3 switches or routers, pure Layer 2 switches are generally less expensive (CCNA-Classes). This makes them an economical choice for providing network access at the edge of the network, connecting end-user devices in small to medium-sized businesses, or even in large enterprise environments where basic port connectivity is the primary requirement.
• Simplicity of Deployment and Management: For basic LAN connectivity, Layer 2 switches are relatively straightforward to deploy. They are often “plug-and-play” for simple networks, automatically learning MAC addresses and forwarding frames without extensive configuration. This simplicity reduces administrative overhead for many common use cases.
• Network Segmentation and Performance Improvement: By creating separate collision domains for each connected device or port, Layer 2 switches significantly reduce packet collisions that were prevalent in older hub-based networks. This segmentation directly translates to improved network performance and reliability (Network Encyclopedia).
• Virtual LAN (VLAN) Support: A key feature of modern Layer 2 switches is their ability to support VLANs. VLANs allow administrators to logically segment a physical LAN into multiple, isolated broadcast domains. This enhances security by controlling traffic flow between segments, improves network organization by grouping users or devices by function (e.g., Sales, Engineering), and allows for more flexible network design.
• Transparent Operation for End Devices: End-user devices (computers, printers, etc.) typically require no special configuration to participate in a Layer 2 switched network. They simply connect, and the switch handles the local traffic forwarding based on their MAC addresses.

Real-World Use: Applications of Layer 2 Switching

The practical benefits of Layer 2 switching translate into its widespread deployment across various network environments and scales:

• Small Office/Home Office (SOHO) Networks: In SOHO environments, unmanaged or lightly managed Layer 2 switches are commonly used to connect a small number of computers, printers, network-attached storage (NAS), and other devices to share resources and an internet connection. Their low cost and ease of use are ideal here.
• Enterprise Access Layer: In larger organizations, Layer 2 switches form the access layer of the network hierarchy. They provide connectivity to a high density of end-user devices such as desktops, laptops, IP phones, wireless access points (WAPs), and printers. Features like Power over Ethernet (PoE) for powering devices like phones and WAPs are also common at this layer.
• Inter-Departmental Segmentation with VLANs: Within enterprises, Layer 2 switches deploying VLANs are crucial for segmenting traffic. For instance, the finance department’s devices can be on one VLAN, marketing on another, and engineering on a third, all sharing the same physical switch infrastructure but remaining logically separate for security and traffic management.
• Data Centers (Specific Segments): While data center networks have complex Layer 3 architectures, Layer 2 switching is still vital for connecting servers within the same rack or row (Top-of-Rack switching). These segments often require very high-speed, low-latency communication between servers for clustered applications, storage access, or virtual machine mobility.
• Reducing Network Congestion: In any network, Layer 2 switches play a vital role by breaking up large collision domains. This mitigates congestion caused by excessive collisions and ensures that bandwidth is more effectively utilized by connected devices.
• Aggregating Slower Links: Layer 2 switches can be used at distribution points to aggregate traffic trom multiple lower-speed access switches before uplinking to a higher-speed core or Layer 3 device.

These applications underscore the versatility and fundamental nature of Layer 2 switching in building efficient and scalable local area networks.

Implementation Insights: Best Practices for Layer 2 Deployment

While Layer 2 switching can be simple at its core, thoughtful design and implementation are necessary to build robust, secure, and scalable Layer 2 networks. Adhering to best practices can prevent common issues and optimize performance.

• Thoughtful Network Design:
  • VLAN Planning: Strategically plan your VLANs to align with organizational structure, security requirements, and traffic patterns. Avoid creating overly large broadcast domains, even within VLANs. Document VLAN assignments clearly.
  • Hierarchical Design: In larger networks, consider a hierarchical model (Access, Distribution, Core) where Layer 2 switching typically dominates the Access layer.
  • Physical Layout: Plan cable runs and switch placements to minimize cable lengths and allow for future expansion.
• Security Considerations: Layer 2 networks are susceptible to various attacks if not properly secured. Implement features such as:
  • Port Security: Limit the number of MAC addresses learned on a port or specify allowed MAC addresses to prevent unauthorized device connections.
  • DHCP Snooping: Configure switches to identify trusted DHCP server ports and drop DHCP server messages from untrusted ports, mitigating rogue DHCP server attacks.
  • Dynamic ARP Inspection (DAI): Validate ARP packets by cross-referencing IP-to-MAC bindings from the DHCP snooping database, preventing ARP spoofing and man-in-the-middle attacks.
  • IP Source Guard: Filter traffic based on source IP and MAC address, further preventing spoofing.
  • Storm Control: Configure thresholds to limit broadcast, multicast, and unknown unicast traffic to prevent network storms that can cripple performance.
  • Unused Port Management: Disable unused switch ports and assign them to an unused VLAN to prevent unauthorized access.
• Redundancy and Loop Prevention:
  • Spanning Tree Protocol (STP): In topologies with redundant links between switches (for high availability), STP (or its faster variants like RSTP, MSTP) is crucial. STP prevents broadcast storms and MAC table instability by logically blocking redundant paths, ensuring a loop-free Layer 2 topology. Proper STP configuration is vital.
  • Link Aggregation (EtherChannel/Port Channeling): Bundle multiple physical links between switches into a single logical link to increase bandwidth and provide redundancy.
• Switch Selection and Configuration:
  • Choose Appropriate Switches: Select switches based on required port density, speeds (e.g., Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet), PoE requirements, and necessary management/security features (managed vs. unmanaged).
  • Firmware Updates: Keep switch firmware updated to patch security vulnerabilities and improve stability/performance.
  • Configuration Backups: Regularly back up switch configurations.
  • Monitoring: Implement network monitoring tools to track switch performance, port status, and traffic levels.

By considering these practices, network administrators can leverage the full potential of Layer 2 switching while maintaining a secure and resilient network environment.

Conclusion: The Enduring Role of Layer 2 Switching

Layer 2 switching, operating at the Data Link Layer of the OSI model, is far more than a technical detail; it is a fundamental pillar upon which modern local area networking is built. Its ability to efficiently and rapidly forward data frames using MAC addresses within a local network segment provides the speed, simplicity, and cost-effectiveness required for a multitude of applications, from small home offices to the access layer of sprawling enterprise networks.

The core benefits—high-speed hardware-based forwarding, segmentation of collision domains, and the organizational power of VLANs—ensure that Layer 2 switching remains indispensable. While network architectures continue to evolve, with trends like Layer 3 routing extending closer to the network edge and the rise of Software-Defined Networking (SDN) abstracting control planes, the foundational data forwarding tasks managed by Layer 2 protocols and devices remain critical. Indeed, many advanced network solutions rely on a robust and well-designed Layer 2 underlay to function effectively.

In essence, Layer 2 switching is the workhorse of local connectivity, quietly and reliably ensuring that devices can communicate within their immediate digital neighborhoods. Its enduring relevance is a testament to its elegant efficiency in solving a core networking challenge, solidifying its place as an essential component in the vast and interconnected digital ecosystem.
